Mini Servo Tester

$8.50
No tax

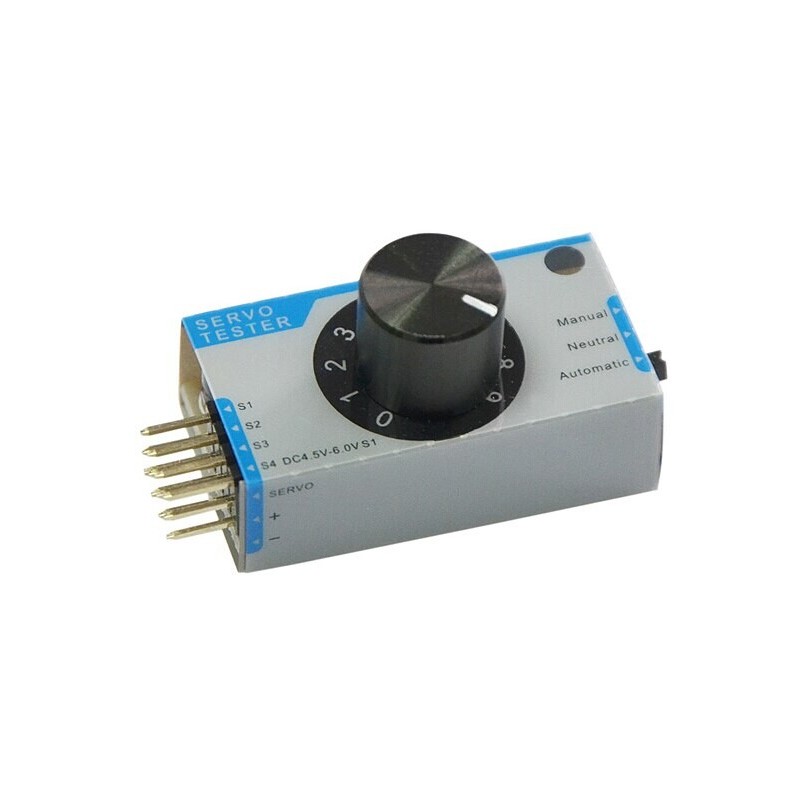

The WEF 001 Servo Tester is a compact and versatile device used to test and control servo motors, commonly used in RC (radio-controlled) models, robotics, and automation projects.

Quantity

  Security policy

We prioritize the security of your personal information and transactions. Our store implements indu

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Key Features

  1. Multiple Control Modes:

    • Manual Mode: Adjust servo position using a dial (potentiometer).

    • Neutral Mode: Moves the servo to its central (neutral) position.

    • Automatic Mode: Continuously cycles the servo back and forth.

  2. Wide Compatibility:

    • Supports standard servos, digital servos, and even some ESCs (Electronic Speed Controllers).

  3. Easy to Use:

    • Simple 3-pin interface (VCC, GND, Signal).

    • LED indicator for status feedback.

  4. Voltage Input Range:

    • Typically 4.8V to 6V, making it compatible with standard RC power supplies and battery packs.

  5. Compact Design:

    • Small and lightweight for easy portability.

How to Use

  1. Power the Tester:

    • Connect a 4.8V–6V power source (e.g., 4 AA batteries or a BEC from an ESC).

  2. Connect the Servo:

    • Plug the servo into the output port (observe correct polarity).

  3. Select Mode:

    • Use the mode selector switch to choose between:

      • Manual: Adjust with the knob.

      • Neutral: Moves servo to the center position.

      • Auto: Moves the servo back and forth continuously.

  4. Observe Movement:

    • The servo should respond according to the selected mode.
