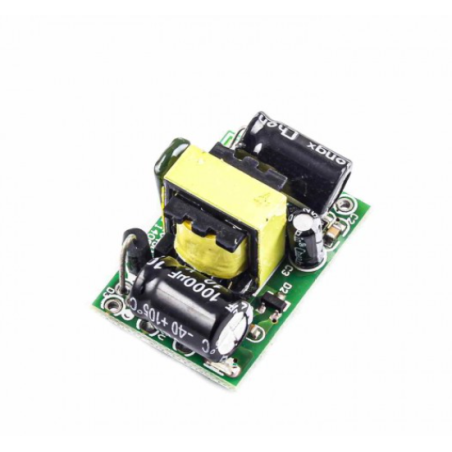

AC-DC Step Down Isolated Switching Power Supply Module - 3.3V, 600mA
$4.50
No tax
A switched-mode power supply is an electronic power supply that incorporates a switching regulator to convert electrical power efficiently. Like other power supplies, an SMPS transfers power from a DC or AC source (often mains power) to DC loads, such as a personal computer, while converting voltage and current characteristics. Unlike a linear power supply, the pass transistor of a switching-mode supply continually switches between low-dissipation, full-on and full-off states, and spends very little time in the high dissipation transitions, which minimizes wasted energy. A hypothetical ideal switched-mode power supply dissipates no power.
Security policy
We prioritize the security of your personal information and transactions. Our store implements indu
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
This power supply is an isolated industrial-grade module power supply that provides temperature protection, overcurrent protection, and short-circuit protection features. With high and low voltage isolation, AC85 ~ 265V wide voltage input, and AC and DC dual-use. It includes 431 precision regulated DC5V output, ultra-small size, high reliability, and high performance.
Input Characteristics:
- Input Voltage Range: 85 ~ 240V AC
- Input Current: 0.0273 (110V AC) ~ 0.014 (220V AC)
- Input Surge Current: 20A
Output Regulation Characteristics:
- Output Voltage Range: 3.1 ~ 3.5V
- Output Current Range: 0A ~ 600 mA
- Peak Current: 700 mA
- Output Power: 2.5w maximum 3W
- Output Efficiency: 85%
- Output Ripple: 150mV
- Switch Overshoot: 10%
- Output Rise Time: 100ms
